Utilisant des capteurs de la plus haute qualité et un objectif multi-verre, la série Blade offre des optiques de pointe et une vidéo réaliste et cristalline qui donne à votre visioconférence l'impression que vous êtes assis ensemble dans la même pièce.
20 x optique + 2 x zoom numérique vous rapproche de vous. Même dans une grande pièce, ce zoom sans perte ira directement dans les détails, avec un mouvement fluide et une précision précise, avec des options de mise au point manuelle et automatique à portée de main.
Adopts most advanced DSP, 1/2.8 inch 5MP sensor
20x optical zoom video camera + 2x Digital Zoom Video Camera, with 60°FOV
1080p30 video over IP
Supports H.264, H.265 encoding; POE

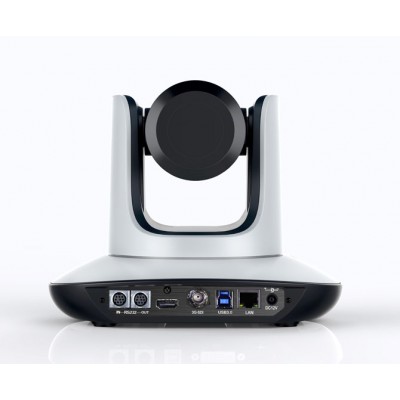

Outputs: IP, HDMI, SDI and USB3.0
Able to set IP address via OSD menu with the IR Remote Controller supplied
Automatic access to the IP address
Special Focusing Algorithm - fast and precise performance when the camera's zooming
WDR, 3D Noise Reduction feature
Standard IP Visca, Serial Visca, Pelco-P/D control protocol; IP Visca over TCP/UDP
| Model | IP-20FHD60 | |||
| Sensor | 1/2.8 inch, 5mega pixel high quality CMOS sensor | |||
| Video Format | HDMI | IP | SDI | USB3.0 |
| 1080p60/50/30/25, | Main stream: | 1080p60/50/30/25; | 1080p60/50/30/25 | |
| 720p60/50/30/25, | 1920x1080p60, | 720p60/50/30/25 | 720p60/50/30/25 | |
| 1080i60/50 | Substream: | 1080i60/50 | ||
| 1280x720,704x576 | USB3.0&USB2.0 | |||
| 640x480,352x288 | 1024x576p30, 960x540p30 | |||
| 640x360p30, 352x288p30 | ||||
| Zoom | 20x optical zoom & 2x digital zoom | |||
| FOV | 60°(diagonal) | |||
| F.no. | Wide: F1.5(Wide)~3.0（Tele） | |||
| Focal Length | f＝5.2(near)～98mm(far) | |||
| Preset | 10 via remote controller; 128 via serial port; preset precision:0.1° | |||
| Rotation Angle | Pan: -170° ~ +170°; Tilt: -35° ~ +90° | |||
| Rotation Speed | Pan: 0°~120°/s ; Tilt: 0°~80°/s | |||
| Control Port | RS232 / RS485/RJ45 | |||
| Video Port | HDMI/ RJ45/SDI/USB3.0/USB2.0 | |||
| Network Speed | 1000M | |||
| Noise Reduction | 2D&3D | |||
| SNR | >50dB | |||
| Minimum Lux | 0.01 lux | |||
| White Balance | Auto / Manual/Auto Tracking/OnePush/Indoor/Outdoor/ | |||
| Anti Flicker | 50Hz/60Hz/OFF | |||
| D/N Mode | Supported | |||
| Gamma | Supported | |||
| Mirror Image | Supported | |||
| PanTilt Flip | Supported | |||
| Iris | Auto / Manual/ | |||
| Electric Shutter | Auto / Manual/ | |||
| BLC | Auto / Manual/ | |||
| Focus | Auto / Manual/ | |||
| Video Encoding | H.264/H.265 | |||
| Bit Rate Control | Variable Bit Rate, Constant Bit Rate | |||
| Video Bit Rate | 1024Kbps~30720Kbps | |||
| Frames | 50HZ:1fps~50fps 60HZ:1fps~60fps | |||
| IP Protocol | TCP/IP, HTTP, RTSP, Onvif, DHCP | |||
| POE | Supported | |||
| Input Voltage | DC12V, 2A | |||
| Dimension | 220mm×173mm×190mm | |||
| Net Weight | 1.25KGS（2.8LBS） | |||
Saber IP 20X ARM
Saber IP 20X (FPGA) ARM
